Diamond, the hardest material in nature, is rapidly expanding into high-end fields such as semiconductor thermal management, power electronics, quantum technologies, and optical devices, thanks to its exceptional thermal conductivity, chemical stability, and unique quantum properties. Behind this materials revolution, microwave source technology has emerged as the core enabler for high-quality diamond synthesis, performance optimization, and industrial-scale applications. At the heart of microwave sources lies the high-power magnetron—the critical component responsible for delivering stable energy output.

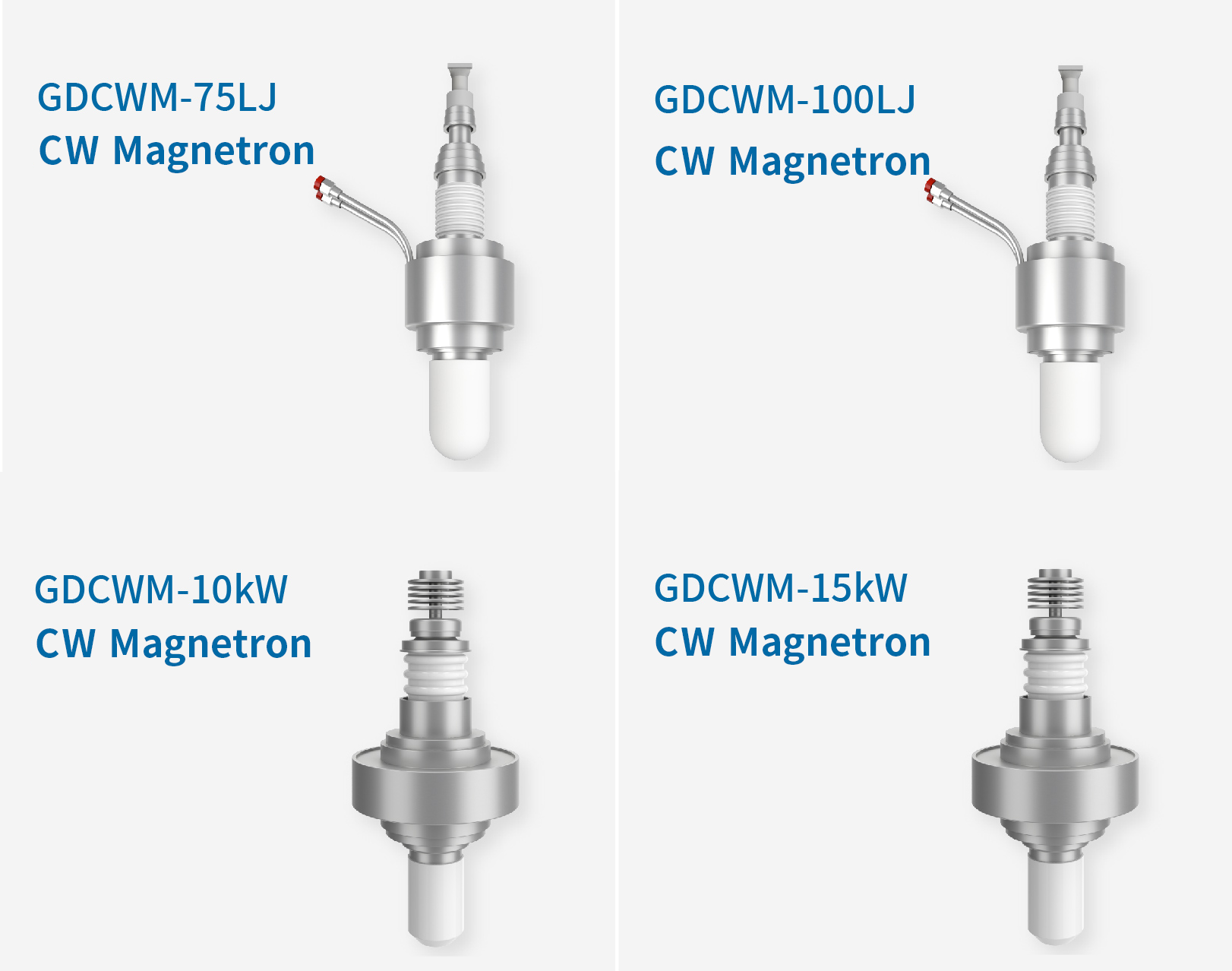

GLVAC, leveraging decades of expertise in vacuum electronic components, has developed high-performance continuous-wave (CW) high-power magnetrons that significantly enhance the energy conversion efficiency and control precision of microwave sources, thereby becoming a key driver in advancing diamond fabrication.

CW magnetron is an electron-vacuum device capable of delivering high-power microwave energy continuously and stably over extended periods. By applying a steady DC high voltage, electrons inside the magnetron move under orthogonal electric and magnetic fields, generating microwaves at a constant frequency.

Microwave-Driven Efficient Diamond Synthesis

After decades of development, microwave plasma chemical vapor deposition (MPCVD) has become the preferred method for synthesizing high-quality single-crystal and polycrystalline diamonds. In this process, the microwave source plays a pivotal role by efficiently converting electrical energy into high-frequency electromagnetic waves, enabling precise and stable plasma ignition and reaction control.

The power and frequency parameters of the microwave source directly determine synthesis efficiency and product specifications—parameters critically dependent on magnetron performance. Currently, the industry primarily uses two frequency bands: 2.45 GHz and 915 MHz. The 2.45 GHz band offers mature, highly stable technology, making it ideal for laboratory and small-to-medium-scale production systems with precise plasma control. Although the 915 MHz band demands more stringent system matching, it generates larger-volume plasma spheres, significantly enhancing the efficiency of large-diameter diamond growth.

Microwave Source Technology Expands Diamond’s Industrial Horizons

 As the cornerstone of chemical vapor deposition, microwave source technology is the key engine propelling diamond industrialization and application expansion. Within the reaction chamber, it produces uniform and efficient plasma, directly influencing diamond growth rate, quality, and size—essential prerequisites for low-cost, high-volume production of premium diamonds. From an industrialization perspective, reliable and stable microwave sources ensure product uniformity and consistency, enabling diamond to transcend traditional tooling applications and enter broader industrial markets, thus establishing a comprehensive technological foundation for diamond commercialization. In terms of application expansion, microwave source technology has overcome critical bottlenecks in fabricating large-area single-crystal and high-grade optical/electronic diamonds, laying the groundwork for disruptive applications in semiconductors, quantum information, and advanced detectors. As the “energy core” of MPCVD processes, the maturity of microwave source technology directly determines the depth and breadth of diamond industrialization.

Co-Evolution of Microwave Sources and the Diamond Industry

 Today, deep collaboration among microwave source manufacturers, diamond material producers, and end-users has become a clear trend. This synergistic industrial ecosystem not only accelerates technical breakthroughs in cavity design and energy coupling for microwave sources but also fast-tracks the commercial adoption of diamond materials in semiconductors, quantum technologies, aerospace, and other cutting-edge fields.

As microwave source technology and diamond materials continue to co-innovate and integrate, the materials revolution led by the “king of hardness” will undoubtedly shine across an ever-expanding array of frontier technologies.
